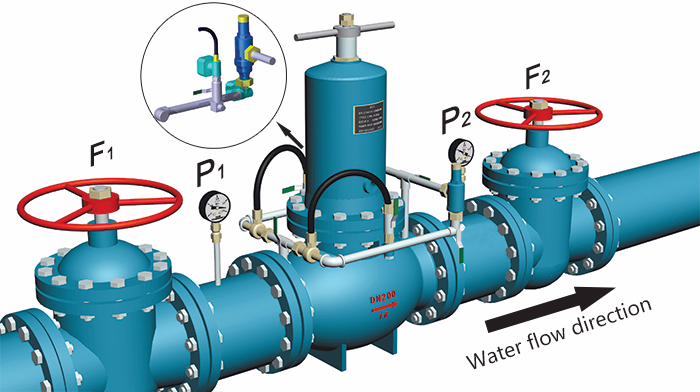

ZJY46H Combined Type Pressure Reducing Valve

ZJY46H piston pressure reducing valve is the latest seventh series patented technology product of Xiangtan central power station auxiliary machine manufacturing Co., Ltd., which provides reliable and reliable cooling water source for technical water supply system of hydropower station.

Maximum Application Loader：800MW（向家坝水电站）

Maximum application water：5000m3/h

Maximum applied head：370m

Maximum reduction ratio：12:1

caliber：DN50-DN500

Pressure grade：1.6MPa-6.4MPa

More parameters

Consultation

FEATURED PROJECTS

More secure
Unique outlet pressure locking system, pressure relief valve can be the upper limit of the rigid lock to ensure that the water supply system after the valve pressure.

Better performance
★I live alone the peak industry decompression ratio can reach 12:1.
★full metal piston structure is sensitive and reliable, the technical parameters have reached the international advanced level.
★This broad scope, imported from 50m to 380m head.

Perfect after-sales service
★Have a professional customer service team, each power station has established a lifetime customer files, regular follow-up visit;
★Keep track of production process.
★The experimental data are available at any time.
★technology upgrades timely release
★This product updates to complete the scene

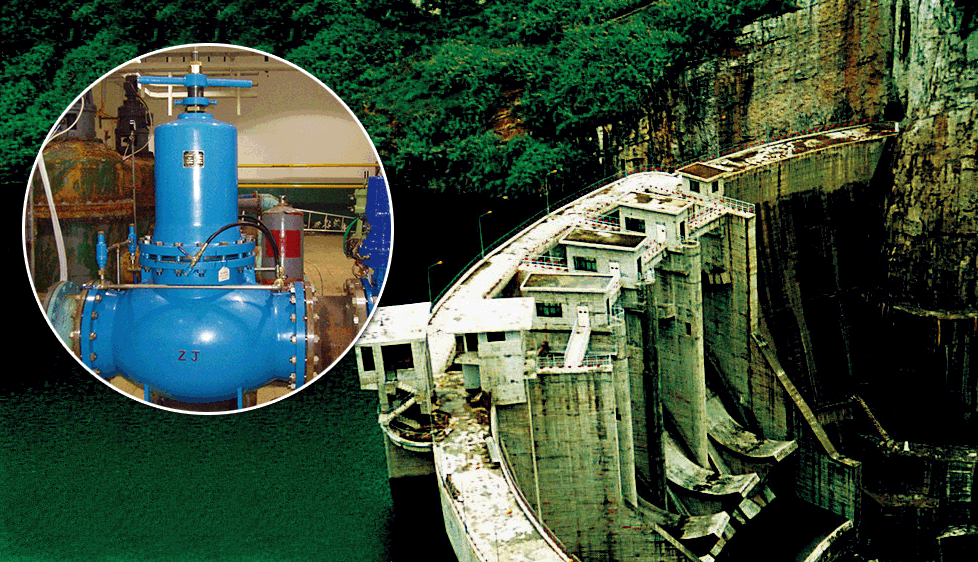

Customer case

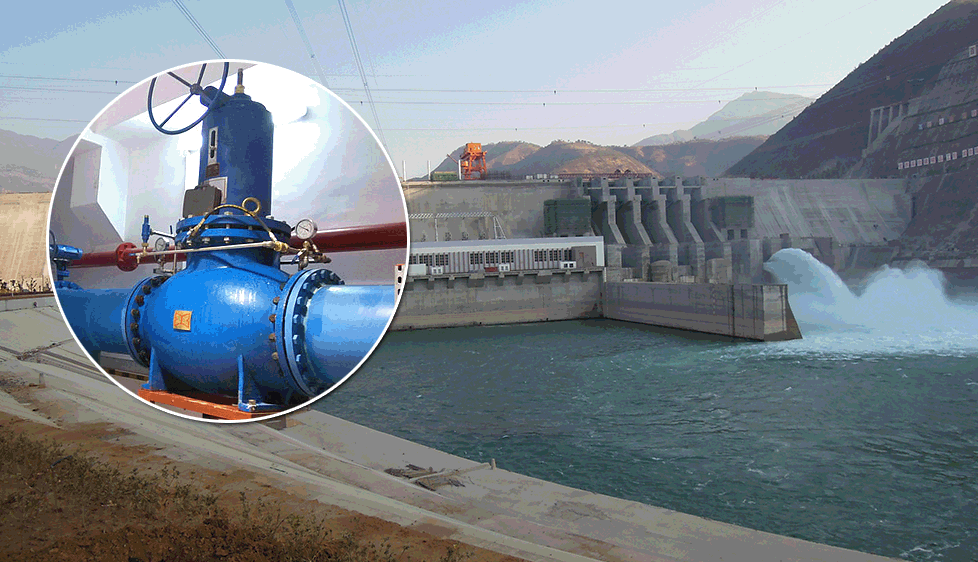

宝珠寺水电站

Region：广元
Maximum head：103
Hydraulic pressure（MPa）：1.6
Caliber（mm）：300；400；80
Installed gross capacity（MW×Num）：175×4

Read More +

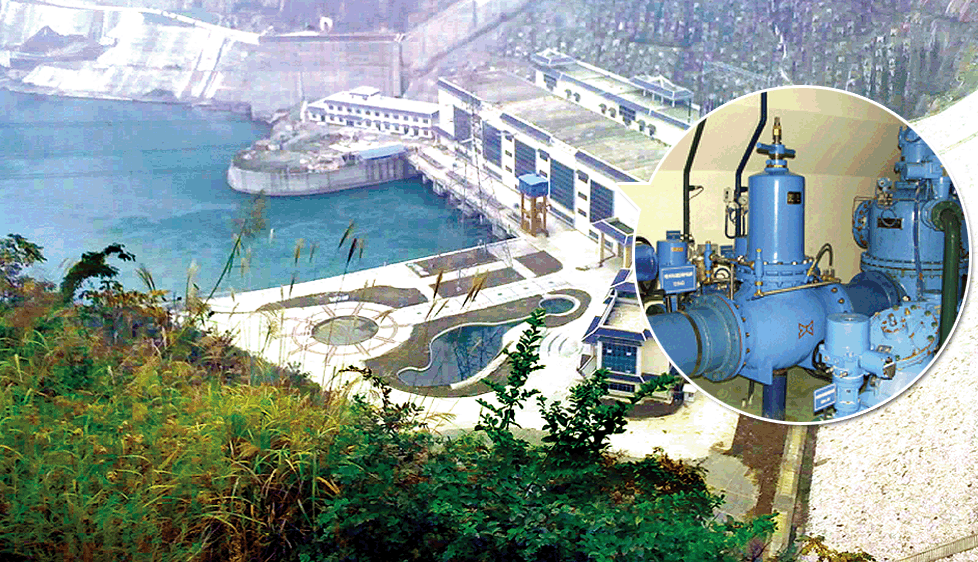

向家坝水电站

Region：宜宾
Maximum head：128
Hydraulic pressure（MPa）：1.6
Caliber（mm）：300
Installed gross capacity（MW×Num）：800×8

Read More +

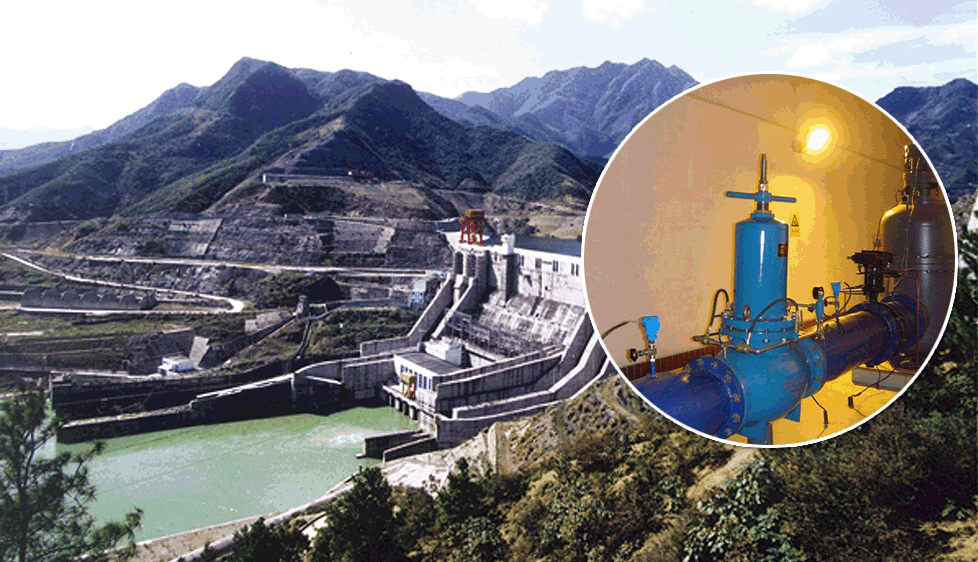

龙开口水电站

Region：大理
Maximum head：75
Hydraulic pressure（MPa）：1.6
Caliber（mm）：450
Installed gross capacity（MW×Num）：5×360

Read More +

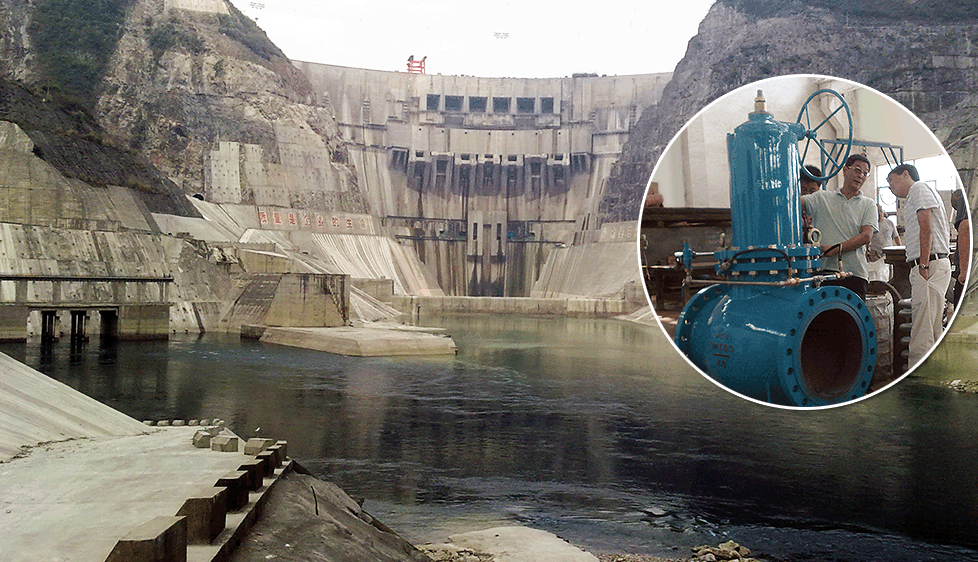

鲁地拉水电站

Region：丽江
Maximum head：90
Hydraulic pressure（MPa）：1.6
Caliber（mm）：150
Installed gross capacity（MW×Num）：6×360

Read More +

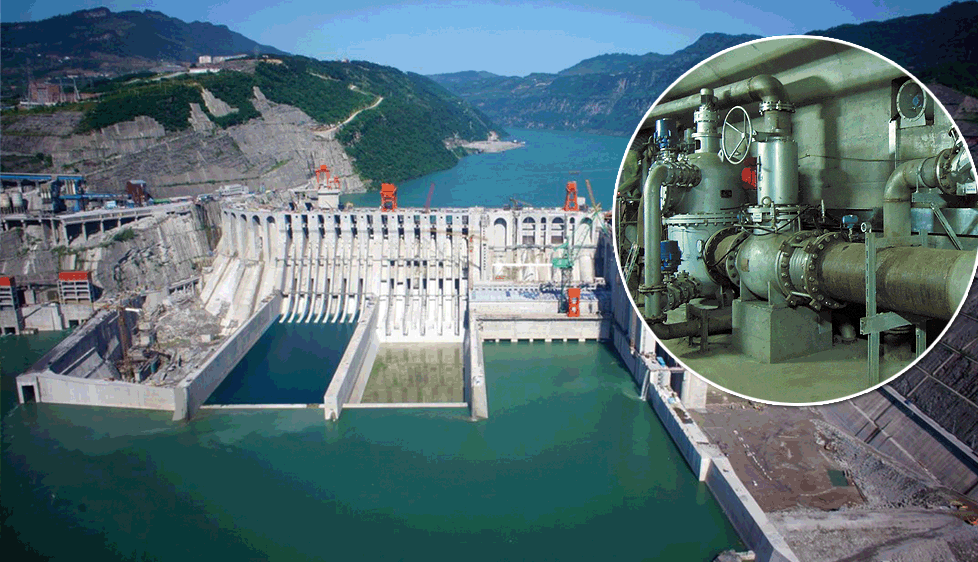

天生桥一级水电站

Region：兴义
Maximum head：204
Hydraulic pressure（MPa）：2.5
Caliber（mm）：300；150
Installed gross capacity（MW×Num）：220×4

Read More +

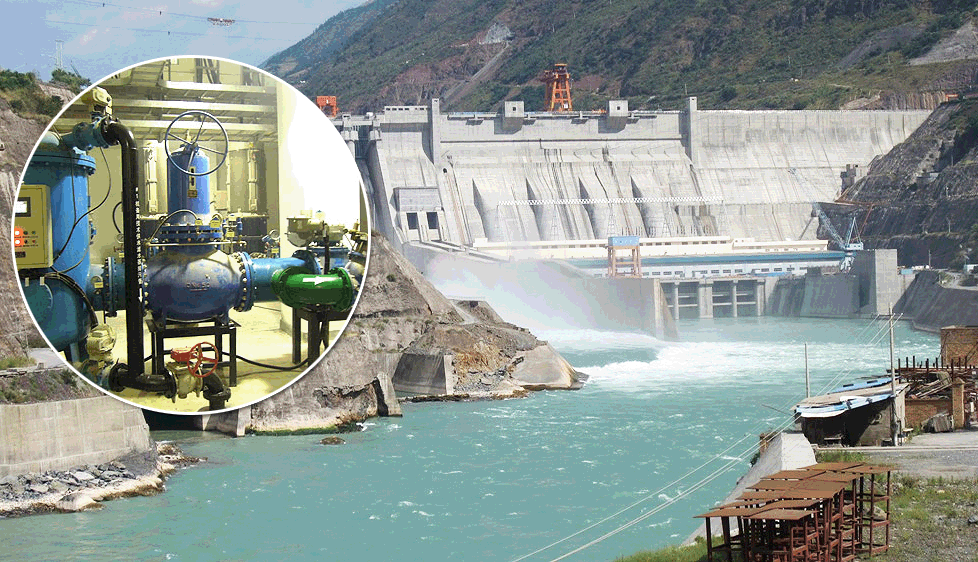

天生桥二级水电站

Region：兴义
Maximum head：204
Hydraulic pressure（MPa）：2.5
Caliber（mm）：300；150
Installed gross capacity（MW×Num）：220×4

Read More +

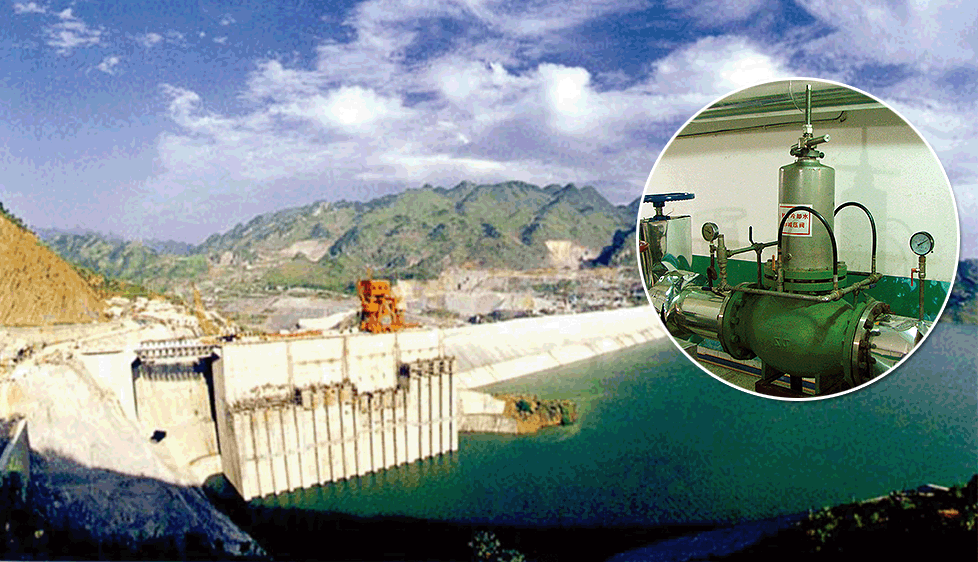

构皮滩水电站

Region：余庆
Maximum head：208
Hydraulic pressure（MPa）：4.0
Caliber（mm）：500
Installed gross capacity（MW×Num）：600×5

Read More +
紫坪铺水电站

Region：都江堰
Maximum head：132.76
Hydraulic pressure（MPa）：1.6
Caliber（mm）：350
Installed gross capacity（MW×Num）：280×4

Read More +

Latest News

Operating principle of piston reducing valves
A reducing valve is an automatic valve which reduces the medium pressure to a certain value. There are two main kinds of reducing valves: piston reducing valves and spring diaphragm reducing valves. A piston reducing valve reduces pressure by means o…

What functions does a reducing valve have?
A reducing valve adjusts the medium flow by controlling the opening of the disc in the valve body so as to minimize the pressure. Meanwhile, it adjusts the opening of the disc by means of downstream pressure, so that the downstream pressure is kept wi…

About us

As a high-tech privately owned company, Xiangtan Zhongji Power Station Auxiliaries Manufacturing Co., Ltd. integrates research, development and manufacture as a whole. Since the establishment of the company, it has been dedicated to the research and development of products in the hydropower industry. The ZJ series products developed by the company have been widely used for water supply systems in power plants and pump stations. Among them, ZJY46H pressure reducing valves have been awarded the technology progress award by the former Ministry of Power Industry. Such products have been put into operation in domestic and international power stations and pump stations such as Goupitan, Zipingpu, Baozhusi,Tianshengqiao, Ertan, Xiaolangdi, etc. Characterized by the highest head of 370 meters, the maximum water supply of 5000m 3 /h, and Single stage pressure release, they are quite popular with users due to stable quality, long service life and convenient maintenance. The unique technologies of the products have filled up the domestic blank.
